Magewell Pro Convert NDI to HDMI 4K

$999.00
Availability: 1 In Stock
Product Code:
Converters
Magewell

Product Features | Technical Specs | Drivers and Software | Product PDF

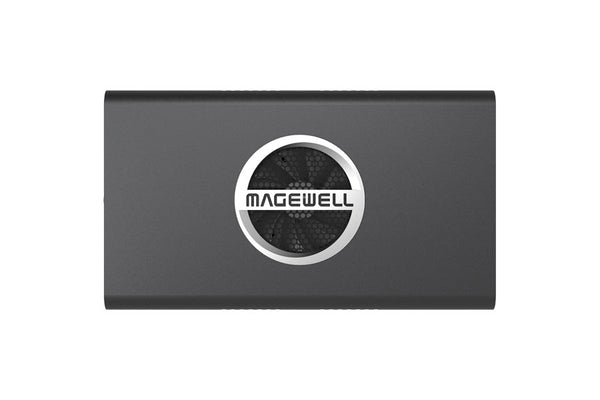

Magewell Pro Convert NDI to HDMI 4K

Standalone 4K60 IP Stream Decoder

  • Convert multi-protocol IP-based stream into 4K HDMI signal
Adopting NewTek’s royalty-free NDI® protocol for encoding and transmission, the Pro Convert family easily and reliably converts video signals such as HDMI and SDI into NDI streams. These NDI streams will be available to all NDI-compatible software and systems on the same network regardless of physical distance, ensuring high-quality, low-latency, IP-based live production experiences superior to traditional live production solutions.

Interface:

Magewell Pro Convert NDI to HDMI 4K


Magewell - Pro Convert NDI to HDMI 4K - Technical Specs:

Supported Web Browser (tested)

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

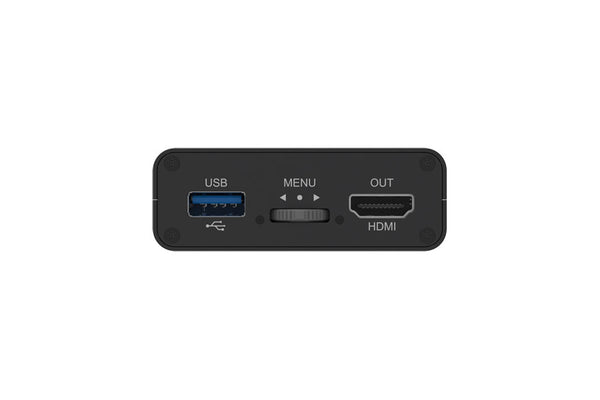

Output Interfaces

  • HDMI
    • HDMI 1.4
    • HDMI 2.0

Storage Interface

  • SD Card (functions to be developed)

Screw Mounting Hole

  • ¼–20 mounting hole

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM
  • USB3.0 Type A
    • Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

Control Buttons

  • MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options

HDMI Output Features

  • Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions
  • Support for 96KHz 16bits 8-channel audio streams
  • Support for delivering videos at the preferred video format according to the EDID of the connected monitor

Stream Decoding Features

  • Support for decoding full NDI® and NDI HX in NDI 4.x
  • Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
  • Support for decoding videos in H.264 and H.265 format
  • Support for decoding AAC/MP3 audios
  • Support for decoding up to 4K 60fps signal
  • Support for modifying configurations using the Web UI or the Options menu
  • Setting Video OSD composition, including
    • Source name & resolution
    • Tally indicators
    • Audio meter
    • Audio meter scale
    • Center cross
    • Safe area
  • Video scaling, frame rate and aspect ratio conversion
  • Video color format conversion
    • Auto or manual selection of input color format
    • Support for YUV BT.601, YUV BT.709 color formats
  • Video vertical and mirror flip
  • Remote controlling the PTZ device connected to the video source
  • Setting audio gain, sample rate and channels
  • Support for decoding sources in different network segment but can be able to pinged
  • Support for decoding alpha channel, options are
    • Alpha only
    • Alpha blend with white
    • Alpha blend with black
    • Alpha blend with checkboard

Device Name

  • Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
  • Support for setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

  • Support for manual update using Web UI

LED Indicator

  • Power LED status indicator
    • On: power connected
    • Off: power unconnected
  • Decode LED status indicator
    • On: decoding in progress
    • Blinks: decoding error
    • Off: source unselected

Form Factor

  • 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket

Power Consumption

  • 5V max current: ~1.6A
  • Max power consumption: ~7.2W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
