Magewell Pro Convert H.26x to HDMI

$369.00
Availability: 3 In Stock
Product Code: 64130
Converters
Magewell

Product Features | Technical Specs | Drivers and Software | Product PDF

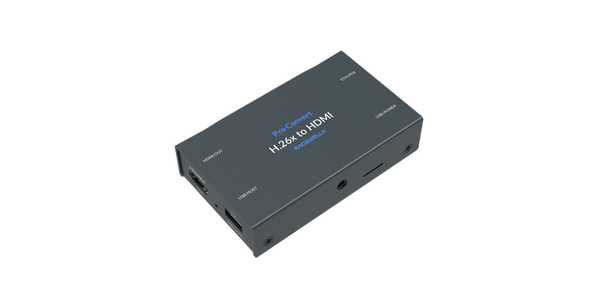

Magewell Pro Convert H.26x to HDMI

Standalone H.26x Decoder

  • Decode one H.26x video stream to an HD HDMI signal
The Pro Convert H.26x to HDMI easily and reliably converts H.26x format video streams into traditional 2K HDMI signals.

Interface:

Magewell Pro Convert H.26x to HDMI


Magewell - Pro Convert H.26x to HDMI - Technical Specs:

Supported Web Browser (tested)

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

Output Interfaces

  • HDMI
    • DVI-D 1.0
    • HDMI 1.4
    • HDMI 2.0

Storage Interface

  • SD Card (functions to be developed)

Screw Mounting Hole

  • ¼–20 mounting hole

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB RNDIS/ECM
  • USB3.0 Type A
    • Support connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

Control Buttons

  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection

HDMI Output Features

  • Support up to 4096x2160 60fps HDMI output
  • Support 96KHz 16bits 8-channel audio streams
  • Support delivering videos at the preferred video format according to the EDID of the connected monitor

Stream Decoding Features

  • Support decoding videos in H.264 and H.265 format
  • Support decoding streams of RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP
  • Support up to 2560x1440 60fps signal decoding
  • Support modifying configurations using the Web UI or the Options menu
  • Setting Video OSD composition, including
    • Source name & resolution
    • Audio meter
    • Audio meter scale
    • Center cross
    • Safe area
  • Video scaling, frame rate and aspect ratio conversion
  • Video color format conversion
    • Auto or manual selection of input color format
    • Support YUV BT.601, YUV BT.709 color formats
  • Video vertical and mirror flip
  • Setting audio gain, sample rate and channels

Device Name

  • Support setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
  • Support setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

  • Support manual update using Web UI

LED Indicator

  • Power LED status indicator
    • On: power connected
    • Off: power unconnected
  • Decode LED status indicator
    • On: decoding in progress
    • Blinks: decoding error
    • Off: source unselected

Form Factor

  • 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

  • USB 2.0 A to B Cable
  • 5V/2.1A power adaptor
  • L-bracket

Power Consumption

  • 5V max current: ~1.1A
  • Max power consumption: ~5W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
